Woody Valley x-rated 7

A masterpiece. The inimitable performance harness.

X-Rated 7 integrates a wide range of innovative technologies for handling, aerodynamics and comfort that make it one of the most popular harnesses on the market.
Completely redesigned, with X-Rated7 we have overcome today’s limits, making possible what was previously impossible, always listening to your suggestions.
We have found a perfect balance between form and technology, developing features that you will no longer be able to do without.

SPECIFICATIONS

Certification LTF
Type of closing strap system Get-Up with T-Lock system
Type of back protection Foam protection with 14 cm diameter
LTF certification No. EAPR-GZ- 0541/16
Working load daN 120
Size M L XL
Weight* kg 7,1 kg 7,7 kg 8,5
Pilot height m < 1,69 m 1,70 – 1,79 m > 1,80
Distance between carabiner and seat cm 47 cm 49,5 cm 53,5
Karabiner-to-karabiner distance (min. max.) cm 40/51 cm 40/51 cm 40/51
CARBON SEAT PLATE DIMENSIONS
Rear width cm 25,8 cm 27,5 cm 29,7
Front width cm 23,3 cm 24,8 cm 26,8
Depth cm 32,5 cm 34,6 cm 37,4
Lower ballast capacity lt 6,3 lt 7,8 lt 9,8
Rescue container Double rescue container under the seat;
paracadute di soccorso anteriore opzionale
Volume of the intended rescue system containers cm 4000-10000
Higher ballast capacity lt 6,5

*Total weight, including reserve parachute handles, karabiners and protection.



New, evolved protection


Foam protection containing 8 separate sectors.

Designed to achieve outstanding results while keeping its small thickness.




Extreme comfort for long distances.

Headrest for less neck strain over long distances.

Perfect in all conditions.

Harness sensitivity can be adjusted for better piloting in all situations thanks to this modern adjustable stabilisation system.


Highly refined, aerodynamic inflatable rear.

Easily interchangeable inflation valves.




We do not compromise on safety.


Dotato di un consolidato sistema di cinturini per le gambe “Mini T-Lock” a prova di dimenticanza.

Two emergency parachute containers under the seat, fully redesigned for optimum aerodynamics and quick opening.

Tasca per paracadute frenante “Anti-G” integrata nella parte posteriore e con moschettone a vincolo baricentrico.

Housing for Safety Knife1 built into the side pocket. 1 Safety Knife sold separately.




The details that make the difference.

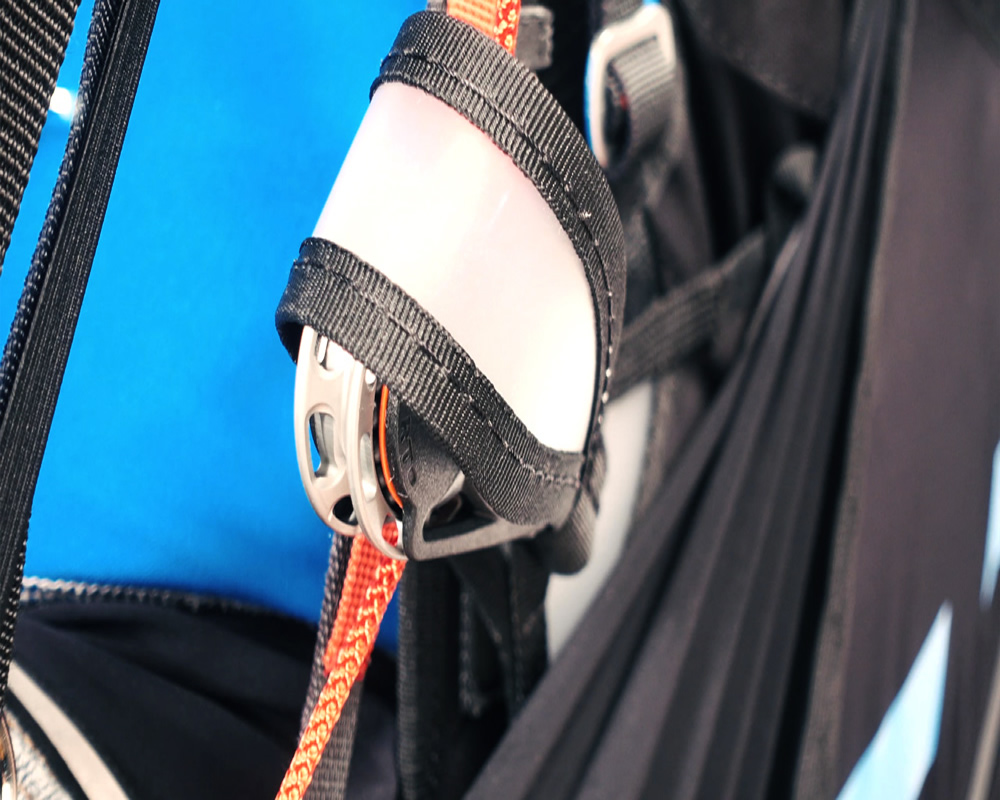

Ratchet pulley with return brake to ease strain and protection to prevent jamming.

The upper part of the protection can be removed without compromising safety

Fondo ad alta resistenza all’abrasione in Cordura®1500.

Pee tube




Everything in its place.


Front pockets with safety loops for radios and cameras

Cockpit più grande e con foro per il passaggio del cavo del Power Bank.

Large elastic material side pockets

Camel-bag




High load capacity with two barycentric seats for ballast bags. The possibility of distributing ballast loads between two compartments and the ability to easily discharge them in flight allow you to make a difference in thermals.
